Severn Fixflow Infratap

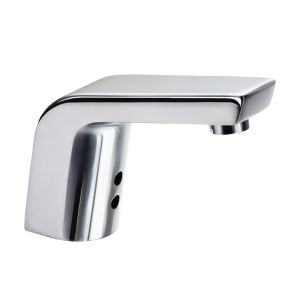

FIXFLOW 814D - FIXED TEMPERATURE AUTOMATIC TAP

The Fixflow range of automatic taps are specifically designed to be installed at a preset temperature, controlled by a thermostatic regulator (please note, thermostatic mixing valves are sold separately) ensuring a constant and regulated temperature every time the tap is activated. Ideal for public and commercial washrooms.

Fixflow Features

Control:

Designed with SCM. Stops water automatically when water flow exceeds 1 minute.

Adjustable distance:

Easily adjustable sensor range.

Strainer device:

Strainer can be removed and cleaned to prevent blocking.

Anti-blocking needle:

The solenoid valve is protected by an anti-blocking needle inside.

Severn Automatic Sensor Tap - Fixed Temperature Specification

• Operating Pressure=1.0 - 8.0 bar (14.5 - 116 PS)
• Maximum Water Temperature=70c
• Water Supply=1/2
BSP
• Capacity=6 volts
• Power Supply=4 x AA Batteries or 240V mains transformer 6V - 6.5V DC (transformer not included – available here)
• Dimensions=H 96 x 60 x Projection 149 mm
• Packaged Dimensions=H10 X W43 X H21.5 cm
• Packaged Weight=1.87 kg
• Thermostatic Mixing Valve is sold separately.

View Infratap brochure
